Sheet, fabric-backed lining laminate sheet, and fabric-backed roll products. Exceptional resistance to all chemical groups at elevated service temperatures.



SIMONA AMERICA Industries offers Halar® 901 ECTFE (ethylene chlorotrifluoroethylene) in sheet and roll form. SIMONA® ECTFE fabric-backed sheet and rolls offer a full range of fabric backings for diverse corrosion resistant lining applications. SIMONA® ECTFE 901 sheet stock is available for diverse chemical process and semicon wet bench equipment.

In forming and fabrication, the sheet is highly consistent and dimensionally stable. Also, for weld integrity and compatibility, SIMONA® offers weld rod made from the same resin grade used in the production of each lining laminate sheet and roll product. Cap strip is also available upon request.

In fabrication, it maintains exceptional flatness and dimensional stability for high production yields and finished part quality. Standard woodworking equipment works well with the material, and fabricators appreciate its advantages for flat, formed or machined panels.

Materials

  • FM 4910 Listed
  • UL 94 V-0
  • NSF-61
  • Operating temp: 40°F - 302°F
  • Excellent permeation resistance to many chemicals
  • Smooth, high gloss surface
  • High strength and rigidity

Applications

  • Highly corrosive acid storage
  • Tanks and reactor vessels
  • Pulp and paper production
  • Semicon process tanks, components
  • Chemical process tanks, components
  • Pipes, valves, fittings

Configurations

Sheet

48 x 96 in. (1,220 mm x 2,440 mm)
Custom length sheet on request

Gauges

0.250, 0.375, 0.50 in. (6.35, 9.25, 12.7 mm)

Colors

Natural (off-white)





For more information about SIMONA ECTFE 901 call +1 (866) 501-2992 or email sales@simona-america.com.

ECTFE 901 Forming Characteristics

In forming and fabrication, the sheet is highly consistent and dimensionally stable. Also, for weld integrity and compatibility, SIMONA® offers weld rod made from the same resin grade used in the production of each lining laminate sheet and roll product. Cap strip is also available upon request.

Excellent Flatness in Fabrication

In fabrication, it maintains exceptional flatness and dimensional stability for high production yields and finished part quality. Standard woodworking equipment works well with the material, and fabricators appreciate its advantages for flat, formed or machined panels.

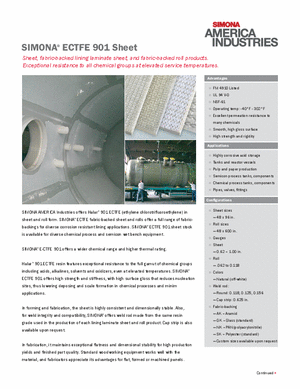

SIMONA® ECTFE 901 Data Sheet
